Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System

Chứng nhận
chất lượng tốt Máy mài Gabion giảm giá
We got three machines form KONSON,the machine is good quality and they provide service of installation and debugging.

—— Hassan Fehmi from Turkey

I imported 80,000 sets gabion boxes.The products and marketing team are both excellent.The gabion got a good mark in quality test.

—— Soriane Morchedi from Algeria

Tôi trò chuyện trực tuyến bây giờ

Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System

Trung Quốc Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System nhà cung cấp
Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System nhà cung cấp Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System nhà cung cấp

Hình ảnh lớn :  Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System

Thông tin chi tiết sản phẩm:

Place of Origin: Jiangsu, China
Hàng hiệu: Konson
Chứng nhận: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS100120-4.0

Thanh toán:

Minimum Order Quantity: 1 Set
Giá bán: Discuss in mail
Packaging Details: One 40'Open Top Container, wooden pallet, as your design
Delivery Time: within 30 days in receiving prepayment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets per Month
Contact Now
Chi tiết sản phẩm
System: PLC Control System Working width: 4300mm
Color: Customer design Mesh Size: 100x120mm

Automatic Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System



Gabion Machine:

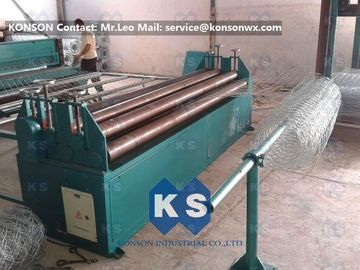

The Konson series hexagonal wire netting machine includes four main standard parts: Main netting machine, winding machine, wire tension device and spiral coiling machine, it can produce gabions of various widths and mesh sizes.

Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System

The standard machines of production line: Main netting machine, winding machine, wire tension device, spiral coiling machine. We can also supply the complete production line, you may choose the optional machines according to your demand.

Gabion Mesh Machine:

1. Model: KS80100-4.0
2. Mesh size: 80x100mm
3. Twist: Double twist
4. Wire diameter: 1.6-4.0mm
5. PVC wire diameter: 3.0-5.5mm
6. Max. width: 4300mm
7. Spindle Speed:25r/min
8. Theoretic output: 3.5m/min
9. Motor power: 22.0kw
10. Weight: 15MT
11. Dimensions: 8100mm x 1500mm x 2180mm

Auto Higher Efficiency Gabion Machine Modular Gabions for Rockfall Netting System


Konson brand gabion machine refers to the machine for making of hexagonal wire netting, it is also known as heavy type hexagonal wire netting machine.  Our machine is specially used to produce the large size and heavy duty hexagonal (galvanized, galfan & PVC wire) wire meshes for the fence and the stone gabions usage. It has several models for different sizes of meshes and the maximum netting width is up to 4.3 meters. We can also supply the complete production line for your whole netting workshop.


Installation and service:

We can dispatch our engineers to your factory for the installation of the machine and the training. About the detailed information of after-sales service, you can contact with our sales personnel.
